3-Way Motorized Valve for Thermal Fluid

• Temperature up to 280oC max.
•  PN10 flanges
• On/Off Operation , Modulation type (Optional)
• Actuator 230 VAC, Closing Force : 1500 N

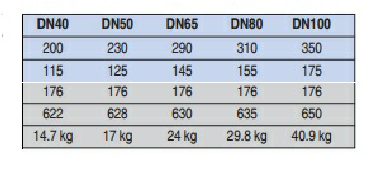

B

C

D

A

3-Way Motorized Valve for Hot Water

• Temperature up to 120oC max.
•  PN10 flanges
• On/Off Operation , Modulation type (Optional)
• Actuator 230 VAC, Closing Force : 1000 N

Motorized Valve for Steam

• Temperature up to 200oC
• Pressure up to 10 bar
• Stainless Steel 304 body
• Graphite filled teflon seat
• High Torque Actuator 35 Nm
• 230VAC, 50Hz/60Hz On/Off
• Diametrs available 25mm,     32mm, 40 mm & 50 mm.
• BSP Threaded Ends

3-Way Motorized Valve for Hot Water

• Temperature up to 120oC
• Pressure up to 6 bar
• Nickel Plated Bronze Body
• High Torque Actuator 35 Nm
• 230VAC, 50Hz/60Hz On/Off
• Diametrs available 32 mm,     40 mm & 50 mm.
• BSP Threaded Ends
• L-Diverting Flow

MOTORISED  VALVES
